| 分断能力 | 材料 | 工作温度 | 焊接条件 |
| 35A或10ln，以较大者为准 | 保险丝体-玻璃管 端盖—镀镍黄铜 尾纤—镀镍黄铜盖上的镀锡铜 | -40°C~+125°C | Wave solder：260℃，≤10S Hand solder：360℃，≤5S |

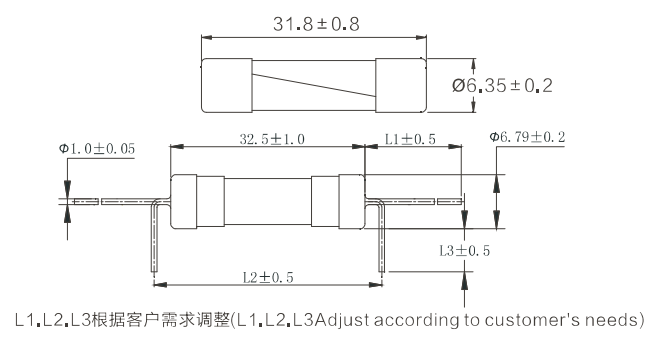

尺寸图（单位:mm）
电气特性：
| 测试电流 | 熔断时间 | |
| 最小 | 最大 | |
| 115% | 1 hour | - |
| 210% | 100ms | 20s(80mA~10A) 60s(12.5A~20A) |
| 275% | 20ms | 1.5s(80mA~10A) 3s(12.5A~20A) |
| 400% | 8ms | 400ms(80mA~10A) 1s(12.5A~20A) |
| 400% | - | 80ms(80A~10A) 150ms(12.5A~20A) |
Approvals认证：（○ 表示认证中Pending● 表示已获认证Approvals）
| 额定电流 | 额定电压 | I2T(A2sec) | Approvals 认证 | ||||
 |  |  |  |  | |||
| 80mA | 250V | 0.0043 | ○ | ○ | ○ | ● | ○ |
| 100mA | 250V | 0.0055 | ○ | ○ | ○ | ● | ○ |
| 125mA | 250V | 0.0076 | ○ | ○ | ○ | ● | ○ |
| 160mA | 250V | 0.0199 | ○ | ○ | ○ | ● | ○ |
| 200MA | 250V | 0.0208 | ○ | ○ | ○ | ● | ○ |
| 250MA | 250V | 0.0424 | ○ | ○ | ○ | ● | ○ |
| 315MA | 250V | 0.0615 | ○ | ○ | ○ | ● | ○ |
| 400MA | 250V | 0.0968 | ○ | ○ | ○ | ● | ○ |
| 500MA | 250V | 0.111 | ○ | ○ | ○ | ● | ○ |
| 630MA | 250V | 0.308 | ○ | ○ | ○ | ● | ○ |
| 800MA | 250V | 0.747 | ○ | ○ | ○ | ● | ○ |
| 1A | 250V | 2.005 | ○ | ○ | ○ | ● | ○ |
| 1.25A | 250V | 2.579 | ○ | ○ | ○ | ● | ○ |
| 1.6A | 250V | 3.855 | ○ | ○ | ○ | ● | ○ |
| 2A | 250V | 6.261 | ○ | ○ | ○ | ● | ○ |
| 2.5A | 250V | 9.213 | ○ | ○ | ○ | ● | ○ |
| 3.15A | 250V | 20.488 | ○ | ○ | ○ | ● | ○ |
| 4A | 250V | 30.075 | ○ | ○ | ○ | ● | ○ |
| 5A | 250V | 51.73 | ○ | ○ | ○ | ● | ○ |
| 6.3A | 250V | 81.09 | ○ | ○ | ○ | ● | ○ |
| 8A | 250V | 137.78 | ○ | ● | ○ | ● | ○ |
| 10A | 250V | 198.34 | ○ | ● | ○ | ● | ○ |
| 12.5A | 250V | 309.63 | ○ | ● | ○ | ● | ○ |
| 15A | 250V | 409.88 | ○ | ○ | ○ | ● | ○ |
| 16A | 250V | 507.33 | ○ | ● | ○ | ● | ○ |
| 20A | 250V | 817.66 | ○ | ○ | ○ | ● | ○ |
| 25A | 250V | 890.68 | ○ | ○ | ○ | ● | ○ |
| 30A | 250V | 950.21 | ○ | ○ | ○ | ● | ○ |
