| 分断能力 | 材料 | 工作温度 | 焊接条件 |
| 35A或10ln，以较大者为准 | 保险丝体-玻璃管 | -40°C~+125°C | 波峰焊：260℃，≤10S 手工焊：360℃，≤5S |
| 端盖——镀镍黄铜 | |||
| 尾纤——镀镍黄铜盖上的镀锡铜 |

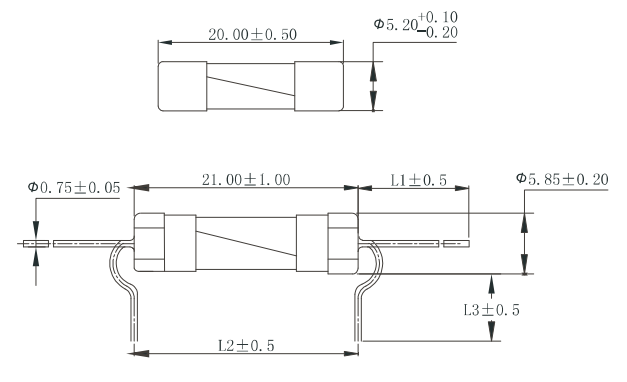

尺寸图（单位:mm）
电气特性：
| 测试电流 | 熔断时间 | |
| 最小 | 最大 | |
| 150% | 1 hour | - |
210%(250mA-10A) (10A-20A) | 1s | 120s 300s |
275%(250mA-10A) (10A-20A) | 600ms | 10s 15s |
400%(250mA-10A) (10A-20A) | 150ms | 3s 5s |
1000%(250mA-10A) (10A-20A) | 20ms | 300ms 400ms |
Approvals认证：（○ 表示认证中Pending ● 表示已获认证Approvals）
| 额定电流 | 额定电压 | I2T(A2sec) | Approvals 认证 | ||||||
 |  |  |  |  |  |  | |||
| 250mA | 250V | 0.20 | ● | ● | ● | ● | ● | ||
| 315mA | 250V | 0.31 | ● | ● | ● | ● | ● | ||
| 400mA | 250V | 0.65 | ● | ● | ● | ● | ● | ||
| 500mA | 250V | 1.40 | ● | ● | ● | ● | ● | ||
| 630mA | 250V | 2.50 | ● | ● | ● | ● | ● | ||
| 800mA | 250V | 4.20 | ● | ● | ● | ● | ● | ||
| 1A | 250V | 5.40 | ● | ● | ● | ● | ● | ||
| 1.25A | 250V | 8.70 | ● | ● | ● | ● | ● | ||
| 1.6A | 250V | 20.00 | ● | ● | ● | ● | ● | ||
| 2A | 250V | 28.00 | ● | ● | ● | ● | ● | ||
| 2.5A | 250V | 46.00 | ● | ● | ● | ● | ● | ||
| 3.15A | 250V | 50.00 | ● | ● | ● | ● | ● | ||
| 4A | 250V | 68.00 | ● | ● | ● | ● | ● | ||
| 5A | 250V | 109.80 | ● | ● | ● | ● | ● | ||
| 6.3A | 250V | 182.00 | ● | ● | ● | ○ | ● | ||
| 8A | 250V | 303.00 | ● | ○ | ● | ● | ● | ||
| 10A | 250V | 470.00 | ● | ○ | ● | ● | ● | ||
| 12.5A | 250V | 1013.00 | ○ | ○ | ● | ● | ○ | ||
| 16A | 250V | 1548.00 | ○ | ○ | ● | ● | ○ | ||
| 20A | 250V | 2158.00 | ○ | ○ | ● | ● | ○ | ||
安全认证/Safety Approvals
| 认证 | 额定电流 | 额定电压 | 证书编号 |
| UL | 0.25A~20A | 250V | E249609 |
| CCC | 0.25A~6.3A | 250V | CCC:2020970207000085 |
| CQC | 8A~20A | 250V | CQC:06012017057 |
| PSE | ≤5A | 250V | PSE:JET5173-31003-2004 |
| KC | 0.25A~10A | 250V | KC:SU05031-10019/10020/10024/10025 |
| VDE | 0.25A~10A | 250V | VDE:40009610 |
