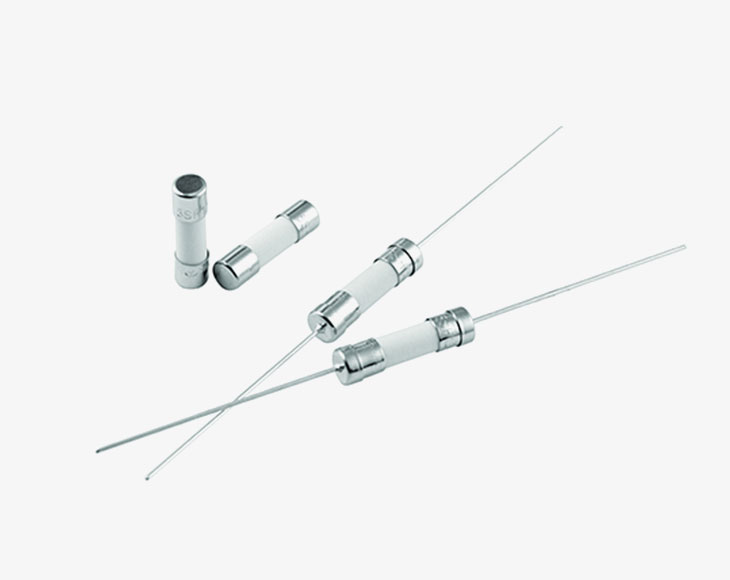

| Breaking Capacity 分断能力 | Material 材料 | Operating Temperature 工作温度 | Soldering conditions 焊接条件 |
| 10000A at 125V AC (1A-12A) 35A at 250V AC (0-1A) 100A at 250V AC (1.1A-3.5A) 200A at 250V AC (3.6A-12A) | Fuse body -ceramic tube End cap--nickel plated brass Pigtail--tin plated copper on nickel plated brass cap | -40℃～+125℃ | Wave solder:260℃,≤5S Hand solder: 360℃,≤1S |
尺寸图(单位:mm)
Functional Characteristics 电气特性
| Testing current 测试电流 | Blow Time 熔断时间 | |
| Min最小 | Max最大 | |
| 100% | 4 hours | - |
| 135% | - | 1 hour |
| 200% | 200ms | 120s |
Approvals认证（○ Pending表示认证中 ● Approvals表示已获认证）
| Current Rating 额定电流 | Voltage Rating 额定电压 | Norminal Melting I2T(A2sec) | Approvals 认证 | |
 |  | |||
| 1A | 125V/250V | 1.8 | ● | |
| 2A | 125V/250V | 7.8 | ● | |
| 2.5A | 125V/250V | 11.5 | ● | |
| 3A | 125V/250V | 17 | ● | |
| 3.5A | 125V/250V | 18 | ● | |
| 4A | 125V/250V | 27 | ● | |
| 5A | 125V/250V | 43 | ● | |
| 6A | 125V/250V | 62 | ● | |
| 8A | 125V/250V | 110 | ● | |
| 10A | 125V/250V | 128 | ● | |
| 12A | 125V/250V | 138 | ● | |
| 15A | 125V/250V | 210 | ● | |
