| 分断能力 | 材料 | 工作温度 | 焊接条件 |
| 35A或10ln，以较大者为准 | 保险丝体—玻璃管 端盖—镀镍黄铜 尾纤—镀镍黄铜盖上的镀锡铜 | -40°C~+125°C | 波峰焊：260℃，≤10S 手工焊：360℃，≤5S |

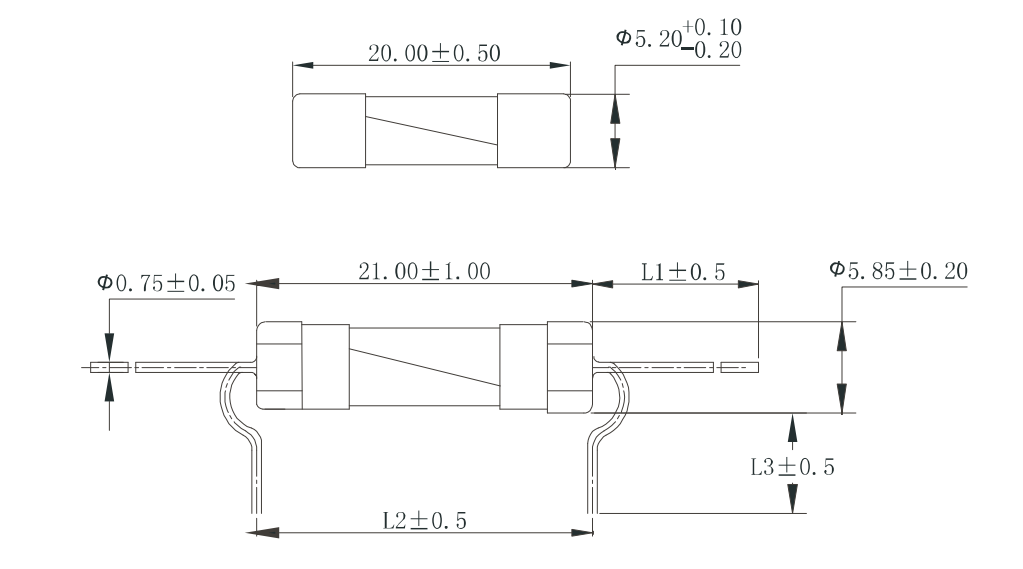

尺寸图（单位:mm）
电气特性：
| 测试电流 | 熔断时间 | |
| 最小 | 最大 | |
| 150% | 1 hour | - |
| 210% | 100ms | 1800 s |
| 275% | 50ms | 2s |
| 400% | 10ms | 300ms(250mA-6.3A) 400ms(8A-20A) |
| 1000% | - | 20ms(250mA-6.3A) 40ms(8A-20A) 50ms(10A-20A) |
Approvals认证：(○ 表示认证中Pending ● 表示已获认证Approvals)
| 额定电流 | 额定电压 | I2T(A2sec) | 认证 | ||||||
 |  |  |  |  |  |  | |||
| 250mA | 250V | 0.144 | ○ | ● | ● | ● | ○ | ● | ● |
| 315mA | 250V | 0.290 | ○ | ● | ● | ● | ○ | ● | ● |
| 400mA | 250V | 0.580 | ○ | ○ | ● | ● | ○ | ● | ○ |
| 500mA | 250V | 1.070 | ○ | ● | ● | ● | ○ | ● | ● |
| 630mA | 250V | 1.090 | ○ | ● | ● | ● | ○ | ● | ● |
| 800mA | 250V | 2.660 | ○ | ● | ● | ● | ○ | ● | ● |
| 1A | 250V | 3.920 | ○ | ● | ● | ● | ○ | ● | ● |
| 1.25A | 250V | 7.980 | ○ | ● | ● | ● | ○ | ● | ● |
| 1.6A | 250V | 17.00 | ○ | ● | ● | ● | ○ | ● | ● |
| 2A | 250V | 25.00 | ○ | ● | ● | ● | ○ | ● | ● |
| 2.5A | 250V | 37.00 | ○ | ● | ● | ● | ○ | ● | ● |
| 3.15A | 250V | 48.00 | ○ | ● | ● | ● | ○ | ● | ● |
| 4A | 250V | 63.00 | ○ | ● | ● | ● | ○ | ● | ● |
| 5A | 250V | 100.00 | ○ | ● | ● | ● | ○ | ● | ● |
| 6.3A | 250V | 190.00 | ○ | ● | ● | ● | ○ | ○ | ● |
| 8A | 250V | 301.00 | ○ | ● | ● | ○ | ● | ○ | ● |
| 10A | 250V | 506.00 | ○ | ● | ● | ○ | ● | ○ | ● |
| 12.5A | 250V | 716.00 | ● | ○ | ● | ○ | ● | ○ | ○ |
| 16A | 250V | 1332.00 | ● | ○ | ● | ○ | ● | ○ | ○ |
| 20A | 250V | 2077.00 | ○ | ○ | ● | ○ | ○ | ○ | ○ |
安全认证/Safety Approvals
| 认证 | 额定电流 | 额定电压 | 证书编号 |
| UL | 0.25A~20A | 250V | E249609 |
| CCC | 0.25A~6.3A | 250V | CCC:2020970207000086 |
| CQC | 8A~16A | 250V | CQC:06012017058 |
| PSE | ≤5A | 250V | PSE:JET5173-31003-2003 |
| KC | 0.25A~10A | 250V | KC:SU05031-10021/10022/10023/10026 |
| VDE | 0.25A~16A | 250V | VDE:40009609/4004696 |
