分断能力：
250V交流电时为1500A（1A-10A）
材料：

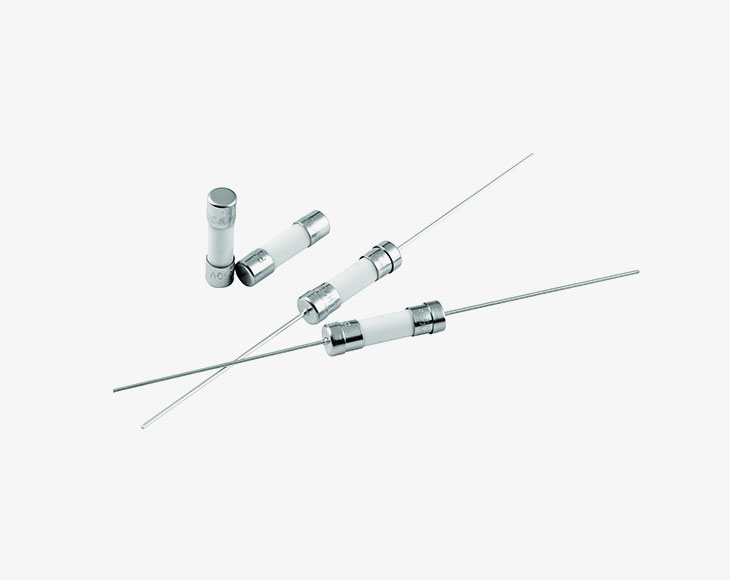

保险丝体-陶瓷管
端盖——镀镍黄铜
尾纤——镀镍黄铜盖上的镀锡铜
工作温度：
-40°C~+125°C
焊接条件：
波峰焊：260℃，≤5S
手工焊：360℃，≤1S
电气特性：
| 电气特性 | ||
| 测试电流 | 熔断时间 | |
| 最小 | 最大 | |
| 150% | 1 hour | - |
| 210% | 100ms | 30min |
| 275% | 10ms(1A-6.3A) 40ms(8A-16A) | 2S(250ms~4A) 3S(5A~6.3A) 20S(8A~20A) |
| 400% | 3ms 10ms | 300ms(250mA~4A) 1S(8A~20A) |
| 1000% | - | 20ms(250mA~6.3A) 30ms(8A~10A) 40ms(12.5A~20A) |
Approvals认证：
○ 表示认证中Pending ● 表示已获认证Approvals
| 定电流 | 额定电压 | 12T(A2sec) | Approvals 认证 | ||||
 |  |  |  |  | |||
| 250mA | 250V | 0.021 | ● | ● | ● | ||
| 315mA | 250V | 0.033 | ● | ● | ● | ||
| 400mA | 250V | 0.052 | ● | ● | ● | ||
| 500mA | 250V | 0.112 | ● | ● | ● | ||
| 630mA | 250V | 0.175 | ● | ● | ● | ||
| 800mA | 250V | 0.351 | ● | ● | ● | ||
| 1A 250V | 250V | 0.566 | ● | ● | ● | ● | |
| 1.25A | 250V | 0.972 | ● | ● | ● | ● | |
| 1.6A | 250V | 1.592 | ● | ● | ● | ● | |
| 2A | 250V | 3.91 | ● | ● | ● | ● | |
| 2.5A | 250V | 6.908 | ● | ● | ● | ● | |
| 3.15A | 250V | 14.89 | ● | ● | ● | ● | |
| 4A | 250V | 22.97 | ● | ● | ● | ● | |
| 5A | 250V | 42.51 | ● | ● | ● | ● | |
| 6.3A | 250V | 69.52 | ● | ● | ● | ● | |
| 8A | 250V | 126.92 | ● | ● | ● | ● | |
| 10A | 250V | 237.11 | ● | ● | ● | ● | |
| 12.5A | 250V | 380.17 | ○ | ○ | ● | ● | |
| 15A | 250V | 556.82 | ● | ● | |||
| 16A | 250V | 639.69 | ○ | ○ | ● | ||
| 20A | 250V | 1196.98 | ○ | ○ | ● | ||
| 4A | 125V/250V | 50 | ● | ● | ● | ● | ● |
| 5A | 125V/250V | 80 | ● | ● | ● | ● | ● |
| 6A | 125V/250V | 82 | ● | ||||
| 6.3A | 125V/250V | 127 | ● | ● | ● | ○ | ● |
| 7A | 125V/250V | 108 | ○ | ||||
| 8A | 125V/250V | 125 | ○ | ● | ○ | ○ | ● |
| 10A | 125V/250V | 180 | ○ | ● | ○ | ○ | ● |
