分断能力：
在125V交流电（250mA-15A）下为10000安培
250V交流电（0-1A）下为35安培
250V交流电（1.1A-3.5A）时为100安培
250V交流电下200安培（3.6A-15A）
材料：

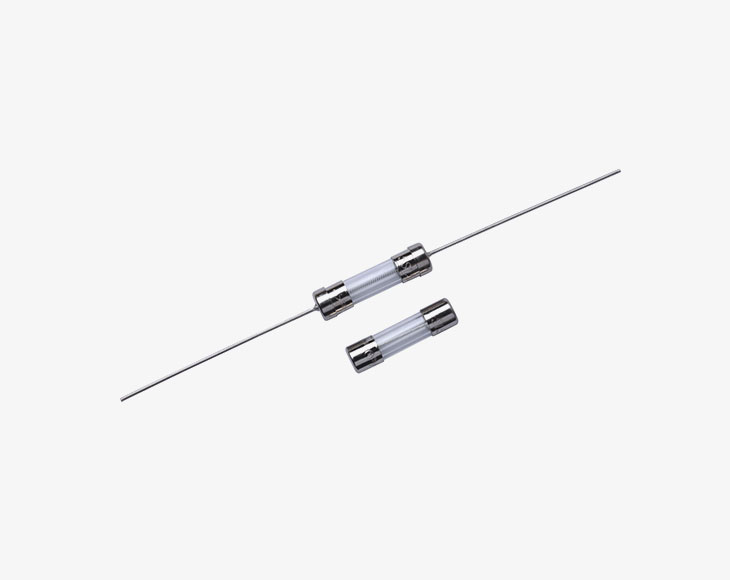

保险丝体-玻璃管
端盖——镀镍黄铜
尾纤——镀镍黄铜盖上的镀锡铜
工作温度：
-40°C~+125°C
焊接条件：
波峰焊：260℃，≤5S
手工焊：360℃，≤1S
电气特性：
| 电气特性 | ||
| 测试电流 | 熔断时间 | |
| 最小 | 最大 | |
| 100% | 4 hour | - |
| 135% | - | 1 hour |
| 200% | 200ms | 120s |
Approvals认证：
○ 表示认证中Pending ● 表示已获认证Approvals
| 额定电流 | 额定电压 | I2T(A2sec) | Approvals 认证 | ||
|
|
|
|||
| 250mA | 125V/250V | 0.28 | ● | ||
| 300mA | 125V/250V | 0.31 | ● | ||
| 315mA | 125V/250V | 0.32 | ● | ||
| 350mA | 125V/250V | 0.34 | ● | ||
| 400mA | 125V/250V | 0.5 | ● | ||
| 500mA | 125V/250V | 0.55 | ● | ||
| 750mA | 125V/250V | 0.72 | ● | ||
| 800mA | 125V/250V | 1.2 | ● | ||
| 1A | 125V/250V | 2 | ● | ● | |
| 1.25A | 125V/250V | 2.4 | ● | ● | |
| 1.5A | 125V/250V | 3.5 | ● | ● | |
| 1.6A | 125V/250V | 3.7 | ● | ● | |
| 2A | 125V/250V | 5.8 | ● | ● | |
| 2.5A | 125V/250V | 8.2 | ● | ● | |
| 3A | 125V/250V | 14 | ● | ● | |
| 3.15A | 125V/250V | 15.2 | ● | ● | |
| 3.5A | 125V/250V | 17 | ● | ● | |
| 4A | 125V/250V | 38 | ● | ● | |
| 5A | 125V/250V | 44 | ● | ● | |
| 6A | 125V/250V | 69 | ● | ● | |
| 6.3A | 125V/250V | 71 | ● | ● | |
| 7A | 125V/250V | 88 | ● | ● | |
| 8A | 125V/250V | 100 | ● | ● | |
| 10A | 125V/250V | 110 | ● | ● | |
| 12A | 125V/250V | 119 | ● | ● | ● |
| 15A | 125V/250V | 188 | ● | ● | ● |
| 8A | 125V/250V | 125 | ○ | ● | ○ |
| 10A | 125V/250V | 180 | ○ | ● | ○ |
