分断能力：
50 amperes at 125V AC (250mA-10A)
25 amperes at 250V AC (250mA-10A)
材料：
Fuse body –EPOXY COATING
End cap--nickel plated brass
Pigtail--tin plated copper on nickel plated brass cap
工作温度：
-40°C~+125°C
焊接条件:
Wave solder:260℃,≤5S
Hand solder: 360℃,≤1S

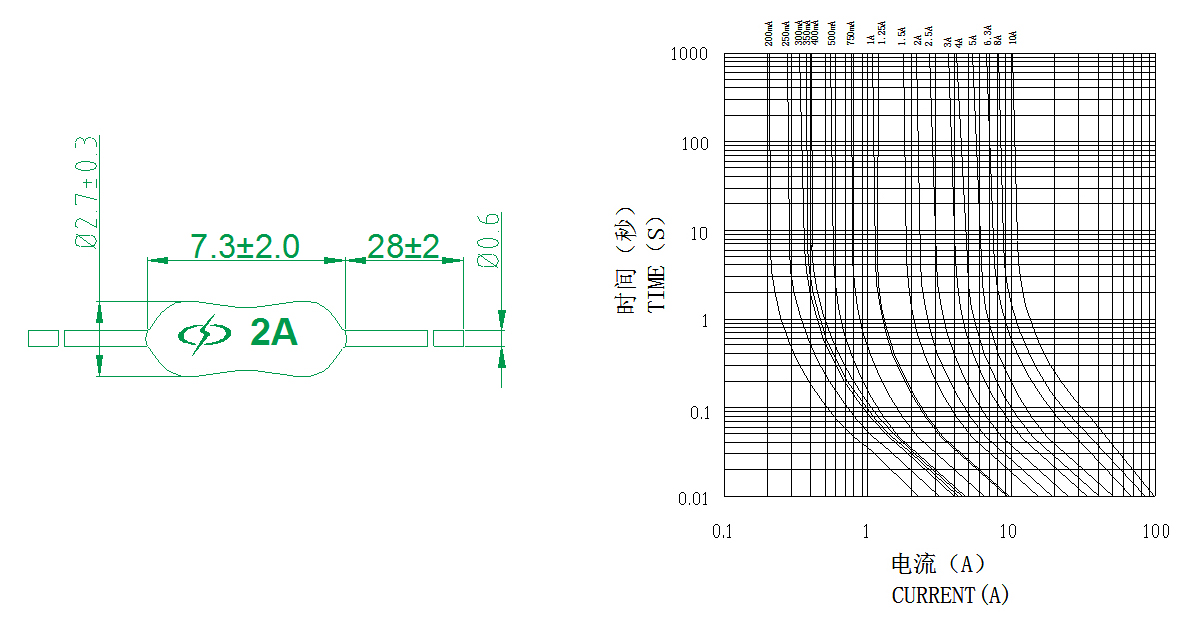

电气特性：
| 电气特性 | ||
| 测试电流 | 熔断时间 | |
| 最小 | 最大 | |
| 150% | 1 hour | - |
| 210% | 100ms | 1800s |
| 275% | 10ms | 3s |
| 400% | 3ms | 300ms |
| 1000% | - | 20ms |
Approvals认证：
○ 表示认证中Pending ● 表示已获认证Approvals
| 额定电流 | 额定电压 | I2T(A2sec) | 认证 | ||||
 |  |  |  |  | |||
| 250mA | 125V/250V | 0.14 | ● | ● | ● | ● | |
| 300mA | 125V/250V | 0.2 | ● | ||||
| 315mA | 125V/250V | 0.23 | ● | ● | ● | ● | |
| 350mA | 125V/250V | 0.27 | ● | ||||
| 400mA | 125V/250V | 0.38 | ● | ||||
| 500mA | 125V/250V | 0.5 | ● | ● | ● | ● | |
| 600mA | 125V/250V | 0.72 | ● | ||||
| 630mA | 125V/250V | 0.9 | ● | ● | ● | ● | |
| 750mA | 125V/250V | 1.2 | ● | ||||
| 800mA | 125V/250V | 1.6 | ● | ● | ● | ● | |
| 1A | 125V/250V | 2.4 | ● | ● | ● | ● | ● |
| 1.25A | 125V/250V | 3.5 | ● | ● | ● | ● | ● |
| 1.5A | 125V/250V | 4 | ● | ● | |||
| 1.6A | 125V/250V | 7.2 | ● | ● | ● | ● | ● |
| 2A | 125V/250V | 9.6 | ● | ● | ● | ● | ● |
| 2.5A | 125V/250V | 16 | ● | ● | ● | ● | ● |
| 3A | 125V/250V | 17.8 | ● | ● | |||
| 3.15A | 125V/250V | 22 | ● | ● | ● | ● | ● |
| 3.5A | 125V/250V | 28 | ● | ● | |||
| 4A | 125V/250V | 45 | ● | ● | ● | ● | ● |
| 5A | 125V/250V | 62 | ● | ● | ● | ● | ● |
| 6A | 125V/250V | 70 | ● | ||||
| 6.3A | 125V/250V | 72 | ● | ● | ● | ● | |
| 7A | 125V/250V | 88 | ● | ||||
| 8A | 125V/250V | 110 | ○ | ○ | ● | ○ | |
| 10A | 125V/250V | 144 | ○ | ○ | ● | ○ | |
