分断能力：
在125V交流电（250mA-15A）下为10000安培
250V交流电（0-1A）下为35安培
250V交流电（1.1A-3.5A）时为100安培
250V交流电下200安培（3.6A-15A）

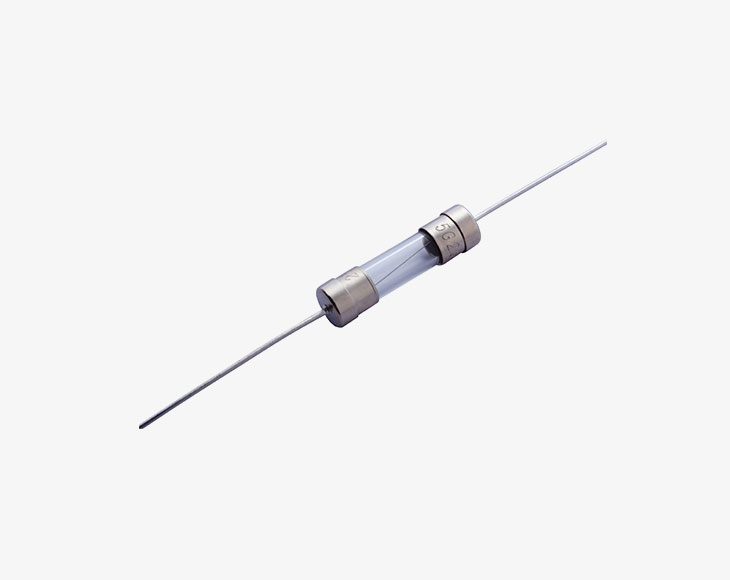

材料：
保险丝体-玻璃管
端盖——镀镍黄铜
尾纤——镀镍黄铜盖上的镀锡铜
工作温度：
-40°C~+125°C
焊接条件：
波峰焊：260℃，≤5S
手工焊：360℃，≤1S
电气特性：
| 电气特性 | ||
| 测试电流 | 熔断时间 | |
| 最小 | 最大 | |
| 150% | 4 hour | - |
| 135% | - | 1 hour |
| 200% | 100ms | 5s(250mA-10A) 10s(12A-15A) |
Approvals认证：
○ 表示认证中Pending ● 表示已获认证Approvals
| 额定电流 | 额定电压 | I2T(A2sec) | 认证 | ||
 |  |  | |||
| 250mA | 250V | 0.144 | ● | ● | |
| 315mA | 250V | 0.299 | ● | ● | |
| 400mA | 250V | 0.369 | ● | ● | |
| 500mA | 250V | 0.676 | ● | ● | |
| 630mA | 250V | 1.074 | ● | ● | |
| 800mA | 250V | 1.732 | ● | ● | |
| 1A | 250V | 2.705 | ● | ● | |
| 1.25A | 250V | 4.144 | ● | ● | |
| 1.6A | 250V | 6.928 | ● | ● | |
| 2A | 250V | 13.79 | ● | ● | |
| 2.5A | 250V | 23.01 | ● | ● | |
| 3.15A | 250V | 35.46 | ● | ● | |
| 4A | 250V | 55.61 | ● | ● | |
| 5A | 250V | 98.58 | ● | ● | |
| 6.3A | 250V | 163.56 | ● | ● | |
| 8A | 250V | 243.84 | ● | ||
| 10A | 250V | 377.75 | ● | ● | |
| 12.5A | 250V | 591.73 | ● | ● | |
| 16A | 250V | 967.49 | ● | ● | |
| 20A | 250V | 1560.6 | ● | ● | |
| 20A | 250V | 1196.98 | ○ | ○ | |
| 4A | 125V/250V | 50 | ● | ● | ● |
| 5A | 125V/250V | 80 | ● | ● | ● |
| 6A | 125V/250V | 82 | ● | ||
| 6.3A | 125V/250V | 127 | ● | ● | ● |
| 7A | 125V/250V | 108 | ○ | ||
| 8A | 125V/250V | 125 | ○ | ● | ○ |
| 10A | 125V/250V | 180 | ○ | ● | ○ |
