分断能力：
在125V交流电（250mA-20A）下为10000安培
250V交流电（0-1A）下为35安培
250V交流电（1.1A-3.5A）时为100安培
250V交流电下200安培（3.6A-20A）

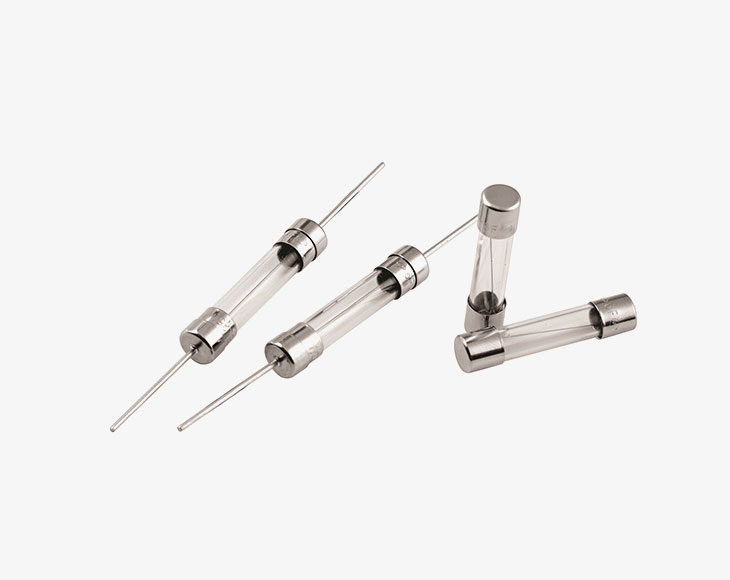

材料：
保险丝体-玻璃/陶瓷管
端盖镀镍黄铜
工作温度：
-40°C~+125°C
焊接条件：
波峰焊：260℃，≤5S
手工焊：360℃，≤1S
电气特性：
| 电气特性 | ||
| 测试电流 | 熔断时间 | |
| 最小 | 最大 | |
| 100% | 4 hour | - |
| 135% | - | 1 hour |
| 200% | 100ms | 5s(500mA-10A) 10s(12A-20A) |
Approvals认证：
○ 表示认证中Pending ● 表示已获认证Approvals
| 额定电流 | 额定电压 | 12T(A2sec) | Approvals 认证 | ||
 |  |  | |||
| 250mA | 125V/250V | 0.25 | ● | ||
| 300mA | 125V/250V | 0.27 | ● | ||
| 315mA | 125V/250V | 0.3 | ● | ||
| 350mA | 125V/250V | 0.32 | ● | ||
| 400mA | 125V/250V | 0.45 | ● | ||
| 500mA | 125V/250V | 0.48 | ● | ||
| 600mA | 125V/250V | 0.6 | ● | ||
| 630mA | 125V/250V | 0.8 | ● | ||
| 750mA | 125V/250V | 1 | ● | ||
| 1A | 125V/250V | 1.8 | ● | ● | |
| 1.25A | 125V/250V | 2.2 | ● | ● | |
| 1.5A | 125V/250V | 3.1 | ● | ● | |
| 1.6A | 125V/250V | 3.5 | ● | ● | |
| 2A | 125V/250V | 5 | ● | ● | |
| 2.5A | 125V/250V | 7.5 | ● | ● | |
| 3A | 125V/250V | 12.5 | ● | ● | |
| 3.15A | 125V/250V | 14.2 | ● | ● | |
| 3.5A | 125V/250V | 15 | ● | ● | |
| 4A | 125V/250V | 30 | ● | ● | |
| 5A | 125V/250V | 42 | ● | ● | |
| 6A | 125V/250V | 60 | ● | ● | |
| 6.3A | 125V/250V | 68 | ● | ● | |
| 7A | 125V/250V | 82 | ● | ● | |
| 8A | 125V/250V | 95 | ● | ● | |
| 10A | 125V/250V | 107 | ● | ● | |
| 12A | 125V/250V | 115 | ● | ● | ● |
| 15A | 125V/250V | 180 | ● | ● | ● |
| 20A | 125V/250V | 576 | ● | ● | ● |
