测试条件
所有特性测试，在环境温度30℃±3℃条件下进行,在此期间温度变化不允许达到+5℃和到极限范围。
分断能力
熔断体的分断能力应能达到下表规定的相应的各种安全认证的分断能力要求。保险丝分断电路后，保险丝管不应破裂、铜帽飞脱、且铜帽两端的绝缘电阻不小于0.1MΩ。
| 分断能力 | 材料 | 工作温度 |
100KA at 1000V AC(1A-63A) 50KA at 1000V DC(1A-63A) 20KA at 500V AC(64A-150A) 10KA at 500V DC(64A-150A) | Fuse body - ceramic tube End cap - Silver plated brass Terminals - Tin plated copper on nickel plated brass cap | -40℃～+125℃ |

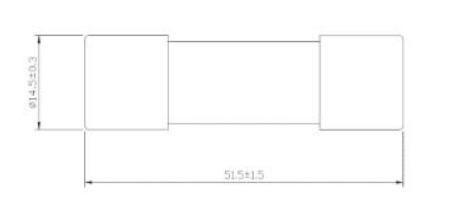

尺寸图（单位:mm）
电气特性
| 熔断电流% | 熔断时间 | |
| 最小 | 最大 | |
| 100% | 4 hours | - |
| 200% | - | 15min |
Approvals认证（○ Pending表示认证中 ● Approvals表示已获认证）
| 额定电流 | 额定电压 | Approvals认证 | ||
 |  |  | ||
| 1A | 1000V | ● | ● | ● |
| 2A | 1000V | ● | ● | ● |
| 3A | 1000V | ● | ● | ● |
| 4A | 1000V | ● | ● | ● |
| 5A | 1000V | ● | ● | ● |
| 6A | 1000V | ● | ● | ● |
| 6.3A | 1000V | ● | ● | ● |
| 8A | 1000V | ● | ● | ● |
| 10A | 1000V | ● | ● | ● |
| 12A | 1000V | ● | ● | ● |
| 15A | 1000V | ● | ● | ● |
| 16A | 1000V | ● | ● | ● |
| 20A | 1000V | ● | ● | ● |
| 25A | 1000V | ● | ● | ● |
| 30A | 1000V | ● | ● | ● |
| 32A | 1000V | ● | ● | ● |
| 35A | 1000V | ● | ● | ● |
| 40A | 1000V | ● | ● | ● |
| 45A | 1000V | ● | ● | ● |
| 50A | 1000V | ● | ● | ● |
| 55A | 1000V | ● | ● | ● |
| 60A | 1000V | ● | ● | ● |
| 63A | 1000V | ● | ● | ● |
| 65A | 500V | ● | ● | ● |
| 70A | 500V | ● | ● | ● |
| 80A | 500V | ● | ● | ● |
| 85A | 500V | ● | ● | ● |
| 90A | 500V | ● | ● | ● |
| 100A | 500V | ● | ● | ● |
| 120A | 500V | ● | ● | ● |
| 125A | 500V | ● | ● | ● |
| 150A | 500V | ● | ● | ● |
