| 分断能力 | 材料 | 工作温度 | 焊接条件 |
30KA at 500V AC/DC(100mA-30A) 1.5KA at 660V AC/DC(1.5.1A-30A) 10KA at 1000V AC/DC(100mA-15A) | Fuse body -- ceramic tude End -- Sliver plated brass Pigtail -- tin plated copper on nickel plated brass cap | -40℃～+125℃ | Wave solder：260℃，≤5S Hand solder：360℃，≤1S |

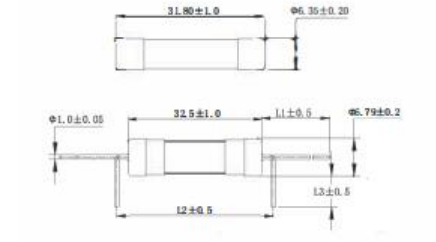

尺寸图(单位:mm)
电气特性
| 测试电流 | 熔断时间 | |
| Min最小 | Max最大 | |
| 100% | 4 hours | - |
| 135% | - | 1 hours |
| 1000% | - | 120s |
Approvals认证（○ Pending表示认证中 ● Approvals表示已获认证）
| 额定电流 | 额定电压 | I2T(A2sec) | Approvals认证 | |
 |  | |||
| 100mA | 500V/690/1000V | 0.0046 | ● | ● |
| 125mA | 500V/690/1000V | 0.0075 | ● | ● |
| 160mA | 500V/690/1000V | 0.0138 | ● | ● |
| 200mA | 500V/690/1000V | 0.0193 | ● | ● |
| 250mA | 500V/690/1000V | 0.0305 | ● | ● |
| 315mA | 500V/690/1000V | 0.0479 | ● | ● |
| 400mA | 500V/690/1000V | 0.0786 | ● | ● |
| 500mA | 500V/690/1000V | 0.1195 | ● | ● |
| 630mA | 500V/690/1000V | 0.1954 | ● | ● |
| 800mA | 500V/690/1000V | 0.3073 | ● | ● |
| 1A | 500V/690/1000V | 0.5663 | ● | ● |
| 1.25A | 500V/690/1000V | 0.7658 | ● | ● |
| 1.6A | 500V/690/1000V | 1.405 | ● | ● |
| 2A | 500V/690/1000V | 4.058 | ● | ● |
| 2.5A | 500V/690/1000V | 5.645 | ● | ● |
| 3.15A | 500V/690/1000V | 9.156 | ● | ● |
| 4A | 500V/690/1000V | 15.128 | ● | ● |
| 5A | 500V/690/1000V | 23.96 | ● | ● |
| 6.3A | 500V/690/1000V | 37.98 | ● | ● |
| 8A | 500V/690/1000V | 67.17 | ● | ● |
| 10A | 500V/690/1000V | 110.75 | ● | ● |
| 12.5A | 500V/690/1000V | 109.39 | ● | ● |
| 16A | 500V/690/1000V | 167.83 | ● | ● |
| 20A | 500V/690/1000V | 368.45 | ● | ● |
| 25A | 500V/690/1000V | 684.13 | ● | ● |
| 30A | 500V/690/1000V | 1148.92 | ● | ● |
