| 分断能力 | 材料 | 工作温度 | 焊接条件 |
2KA at 400V AC/DC(100mA-10A） 500A at 500V AC/DC(100mA-10A） 300A at 600V AC/DC(100mA-10A） | Fuse body -- ceramic tude End -- Sliver plated brass Pigtail -- tin plated copper on nickel plated brass cap | -40℃～+125℃ | Wave solder：260℃，≤5S Hand solder：360℃，≤1S |

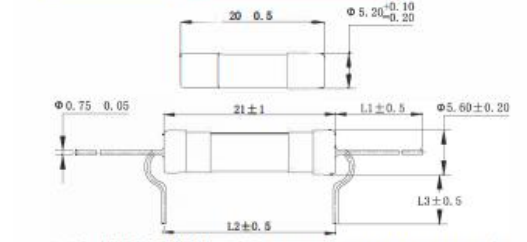

尺寸图(单位:mm)
电气特性
| 测试电流 | 熔断时间 | |
| Min最小 | Max最大 | |
| 150% | 1 hours | - |
| 210% | 100ms | 1800m |
| 1000% | 10ms | 150ms |
Approvals认证（○ Pending表示认证中 ● Approvals表示已获认证）
| 额定电流 | 额定电压 | I2T(A2sec) | 认证 | |
 |  | |||
| 100mA | 400V/500V/600V | 0.0068 | ● | ● |
| 125mA | 400V/500V/600V | 0.0107 | ● | ● |
| 160mA | 400V/500V/600V | 0.0165 | ● | ● |
| 200mA | 400V/500V/600V | 0.0281 | ● | ● |
| 250mA | 400V/500V/600V | 0.0432 | ● | ● |
| 315mA | 400V/500V/600V | 0.0644 | ● | ● |
| 400mA | 400V/500V/600V | 0.0947 | ● | ● |
| 500mA | 400V/500V/600V | 0.1954 | ● | ● |
| 630mA | 400V/500V/600V | 0.3132 | ● | ● |
| 800mA | 400V/500V/600V | 0.9094 | ● | ● |
| 1A | 400V/500V/600V | 1.966 | ● | ● |
| 1.25A | 400V/500V/600V | 2.754 | ● | ● |
| 1.6A | 400V/500V/600V | 4.421 | ● | ● |
| 2A | 400V/500V/600V | 8.563 | ● | ● |
| 2.5A | 400V/500V/600V | 14.5 | ● | ● |
| 3.15A | 400V/500V/600V | 30.42 | ● | ● |
| 4A | 400V/500V/600V | 43.88 | ● | ● |
| 5A | 400V/500V/600V | 74.62 | ● | ● |
| 6.3A | 400V/500V/600V | 116.69 | ● | ● |
| 8A | 400V/500V/600V | 157.89 | ● | ● |
| 10A | 400V/500V/600V | 262.38 | ● | ● |
| 12.5A | 400V/500V/600V | 420.16 | ● | ● |
| 15A | 400V/500V/600V | 681.07 | ● | ● |
| 16A | 400V/500V/600V | 944.78 | ● | ● |
| 20A | 400V/500V/600V | 1500.58 | ● | ● |
