| 分断能力 | 材料 | 工作温度 | 焊接条件 |
| 150A at 125V/250V AC/DC(250mA-60A) | Fuse body - ceramic tube End - Silver plated brass | -40℃～+125℃ | Wave solder:260℃，≤10S Hand solder:360℃，≤5S |

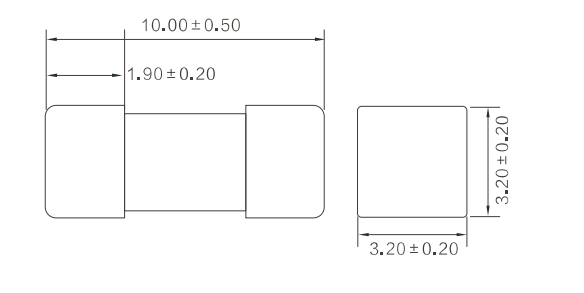

尺寸图(单位:mm)
电气特性：
| 额定电流 | 测试电流 | 熔断时间 | |
| Min最小 | Max最大 | ||
| 250mA~60A | 100% | 4 hour | - |
| 250mA~60A | 200% | 1s | 60s |
Approvals认证(○ 表示认证中Pending ● 表示已获认证Approvals)
| 额定电流 | 额定电压 | I2T(A2sec) | 认证 | ||||
 |  |  |  |  | |||
| 250mA | 125V/250V | 0.039 | ● | ||||
| 300mA | 125V/250V | 0.048 | ● | ||||
| 315mA | 125V/250V | 0.055 | ● | ||||
| 350mA | 125V/250V | 0.061 | ● | ||||
| 400mA | 125V/250V | 0.083 | ● | ||||
| 500mA | 125V/250V | 0.154 | ● | ||||
| 630mA | 125V/250V | 0.257 | ● | ||||
| 750mA | 125V/250V | 0.348 | ● | ||||
| 800mA | 125V/250V | 0.409 | ● | ||||
| 1A | 125V/250V | 0.619 | ● | ||||
| 1.25A | 125V/250V | 1.012 | ● | ||||
| 1.5A | 125V/250V | 1.459 | ● | ||||
| 1.6A | 125V/250V | 1.661 | ● | ||||
| 2A | 125V/250V | 4.831 | ● | ||||
| 2.5A | 125V/250V | 7.493 | ● | ||||
| 3A | 125V/250V | 8.408 | ● | ||||
| 3.15A | 125V/250V | 8.816 | ● | ||||
| 4A | 125V/250V | 29.51 | ● | ||||
| 5A | 125V/250V | 60.08 | ● | ||||
| 6A | 125V/250V | 97.41 | ● | ||||
| 6.3A | 125V/250V | 108.23 | ● | ||||
| 7A | 125V/250V | 176.20 | ● | ||||
| 8A | 125V/250V | 255.96 | ● | ||||
| 10A | 125V/250V | 312.00 | ● | ||||
| 12A | 125V/250V | 325.00 | ● | ||||
| 15A | 125V/250V | 332.00 | ● | ||||
| 16A | 125V/250V | 401.00 | ● | ||||
| 20A | 125V/250V | 567.00 | ● | ||||
| 25A | 125V/250V | 936.00 | ● | ||||
| 30A | 125V/250V | 1000.00 | ● | ||||
| 35A | 125V/250V | 1100.00 | ● | ||||
| 40A | 125V/250V | 1152.00 | ● | ||||
| 45A | 125V/250V | 1308.00 | ● | ||||
| 50A | 125V/250V | 1700.00 | ● | ||||
| 55A | 125V/250V | 1960.00 | ● | ||||
| 60A | 125V/250V | 2252.00 | ● | ||||
安全认证/Safety Approvals
| 认证 | 额定电流 | 额定电压 | 证书编号 |
| UL | 0.25A～60A | 125V/250V | E249609 |
