分断能力：

在250V/300V交流电（125mA-10A）下，VDE为100安培

125V/250V/300V/350V交流电（80mA-10A）下的UL 100安培

材料：

保险丝体-塑料

元素——合金

尾纤——镀锡铜

工作温度：

-40°C~+125°C

焊接条件：

波峰焊：260℃，≤5S

手工焊：360℃，≤1S

包装：

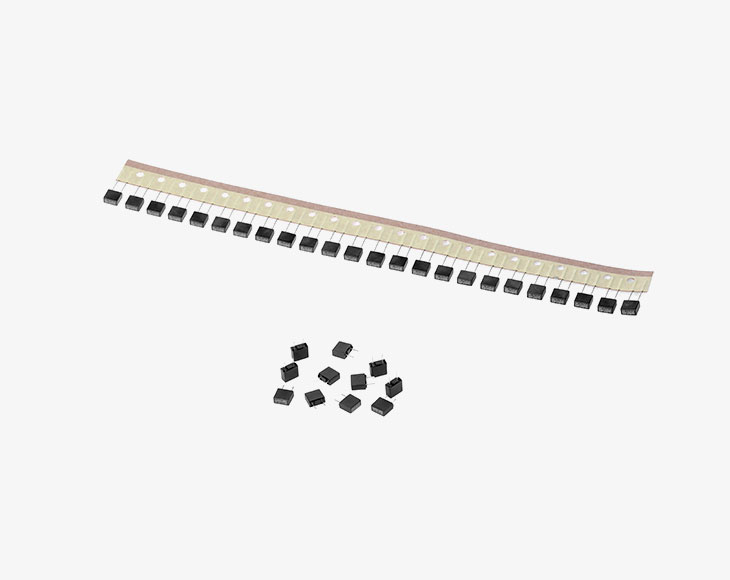

条形阵列，每盒1200件。

电气特性：

Approvals认证：

○ 表示认证中Pending          ● 表示已获认证Approvals

额定电流	额定电压	I2T(A2sec)	Approvals 认证
80mA	250V	0.026			●
100mA	250V	0.035			●
125mA	250V	0.056	●	●	●		●
160mA	250V	0.092	●	●	●		●
200mA	250V	0.163	●	●	●		●
250mA	250V	0.255	●	●	●		●
300mA	250V	0.421			●
315mA	250V	0.603	●	●	●		●
350mA	250V	0.615			●
400mA	250V	0.679	●	●	●		●
500mA	250V	1.179	●	●	●		●
600mA	250V	1.428			●
630mA	250V	1.831	●	●	●		●
750mA	250V	2.517			●
800mA	250V	3.608	●	●	●		●
1A	250V	7.309	●	●	●	●	●
1.25A	250V	12.77	●	●	●	●	●
1.5A	250V	17.29			●	●
1.6A	250V	20.64	●	●	●	●	●
2A	250V	29.51	●	●	●	●	●
2.5A	250V	44.25	●	●	●	●	●
3A	250V	52.36			●	●
3.15A	250V	69.55	●	●	●	●	●
4A	250V	112.2	●	●	●	●	●
5A	250V	190.23	●	●	●	●	●
6A	250V	235.15			●	●
6.3A	250V	262.11	●	●	●	●	●
7A	250V	315.95			●	●
8A	250V	385.44	●	●	●	●	●
10A	250V	609.78	●	●	●	●	●
12A	250V	879.61				●
12.5A	250V	956.35				●
15A	250V	1366.02				●
