材料/Material:Fuse body - Ceramic

                      End cap -   Zn Alloy

工作溫度/Operating Temperature:-40°C~+125°C

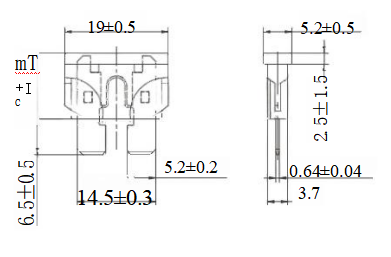

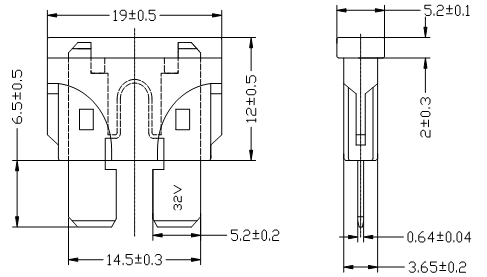

尺寸图:单位Unit:mm

电气特性

Approvals认证：（○ 表示认证中Pending ● 表示已获认证Approvals）

额定电流	额定电压	I2T(A2sec)	颜色标准	冷态电阻mΩ	Approvals认证
2A	32V/125V/250V	4.5	Gray灰	22	●
3A	32V/125V/250V	7.4	Purple紫	22	●
4A	32V/125V/250V	14.0	Pink粉红	22	●
5A	32V/125V/250V	26.0	Tan褐	18	●
7.5A	32V/125V/250V	60.0	Coffee 咖啡	11	●
10A	32V/125V/250V	115.0	Red红	7.5	●
15A	32V/125V/250V	340.0	Blue蓝	4	●
20A	32V/125V/250V	520.0	Yellow黄	3.2	●
25A	32V/125V/250V	1080.0	Transparent透明	2.2	●
30A	32V/125V/250V	1510.0	Green绿	1.8	●
35A	32V/125V/250V	2280.0	Blue Green蓝绿	1.6	●
40A	32V/125V/250V	3310.0	Amber 琥珀	1.2	●
45A	32V/125V/250V	8478.0	Pink粉红	0.8	●
