制造材料/MANFACTURING MATERIAL

测试条件 Test Conditions所有特性测试，在环境温度25°C±5°C条件下进行。All electrical tests are conducted at ambient temperature of 25±5°C.

09H RoHS系列产品用的相关标准是 DIN43560-1Applicable standards for 09H RoHS series areDIN43560-1.

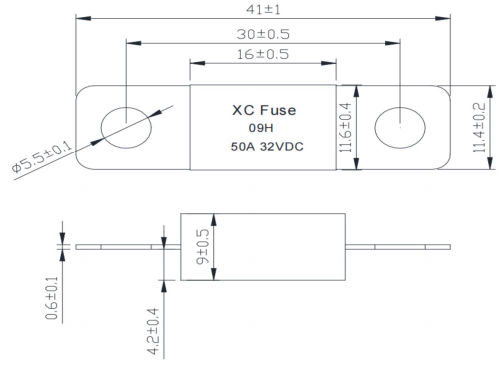

尺寸图:单位Unit:mm

电气特性

分断能力Breaking Capacity熔断体的分断能力应能达到下表规定的相应的各种安全认证的分断能力要求。保险丝分断电路后，保险丝管不应破裂、铜帽飞脱、且铜帽两端的绝缘电阻不小于0.1M2。The interrupting capacity should reach the interrupting rated current given in the following table.And after this test, there should be no damage of the fuse-tube or shattering of the caps. After thistest, the insulation resistance between the end caps shall be not less than 0.1MO.
