电气特性
| 熔断电流% | 熔断时间 | |
| 最小 | 最大 | |
| 300% | - | 900s |
| 100% | 4 hours | - |

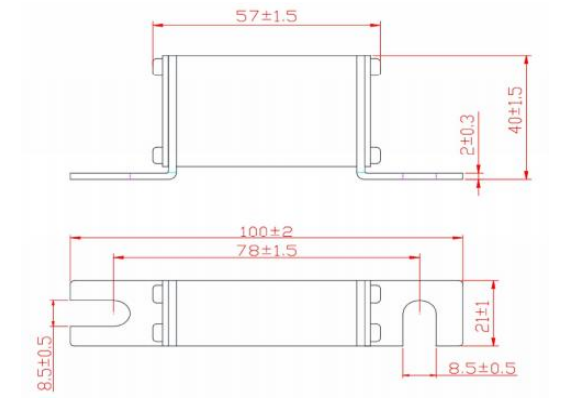

尺寸图（单位：mm)
分断能力
熔断体的分断能力应能达到下表规定的相应的各种安全认证的分断能力要求。保险丝分断电路后，保险丝管不应破裂、铜帽飞脱、且铜帽两端的绝缘电阻不小于0.1MΩ。
| 分断能力 | 材料 | 工作温度 |
50KA at 1000V DC(10A-500A) 100KA at 1000V AC(10A-500A) | Fuse body - ceramic tube End - Silver plated brass Pigtail - tin plated copper on nickel plated | -40℃～+125℃ |
Approvals认证（○ Pending表示认证中 ● Approvals表示已获认证）
| 额定电流 | 额定电压 | 认证 | ||
 |  |  | ||
| 10A | 1000V | ● | ● | ● |
| 12A | 1000V | ● | ● | ● |
| 15A | 1000V | ● | ● | ● |
| 16A | 1000V | ● | ● | ● |
| 20A | 1000V | ● | ● | ● |
| 25A | 1000V | ● | ● | ● |
| 30A | 1000V | ● | ● | ● |
| 32A | 1000V | ● | ● | ● |
| 35A | 1000V | ● | ● | ● |
| 40A | 1000V | ● | ● | ● |
| 45A | 1000V | ● | ● | ● |
| 50A | 1000V | ● | ● | ● |
| 55A | 1000V | ● | ● | ● |
| 60A | 1000V | ● | ● | ● |
| 63A | 1000V | ● | ● | ● |
| 70A | 1000V | ● | ● | ● |
| 80A | 1000V | ● | ● | ● |
| 85A | 1000V | ● | ● | ● |
| 90A | 1000V | ● | ● | ● |
| 100A | 1000V | ● | ● | ● |
| 125A | 1000V | ● | ● | ● |
| 150A | 1000V | ● | ● | ● |
| 160A | 1000V | ● | ● | ● |
| 180A | 1000V | ● | ● | ● |
| 200A | 1000V | ● | ● | ● |
| 225A | 1000V | ● | ● | ● |
| 250A | 1000V | ● | ● | ● |
| 280A | 1000V | ● | ● | ● |
| 300A | 1000V | ● | ● | ● |
| 315A | 1000V | ● | ● | ● |
| 350A | 1000V | ● | ● | ● |
| 375A | 1000V | ● | ● | ● |
| 400A | 1000V | ● | ● | ● |
| 425A | 1000V | ● | ● | ● |
| 450A | 1000V | ● | ● | ● |
| 500A | 1000V | ● | ● | ● |
