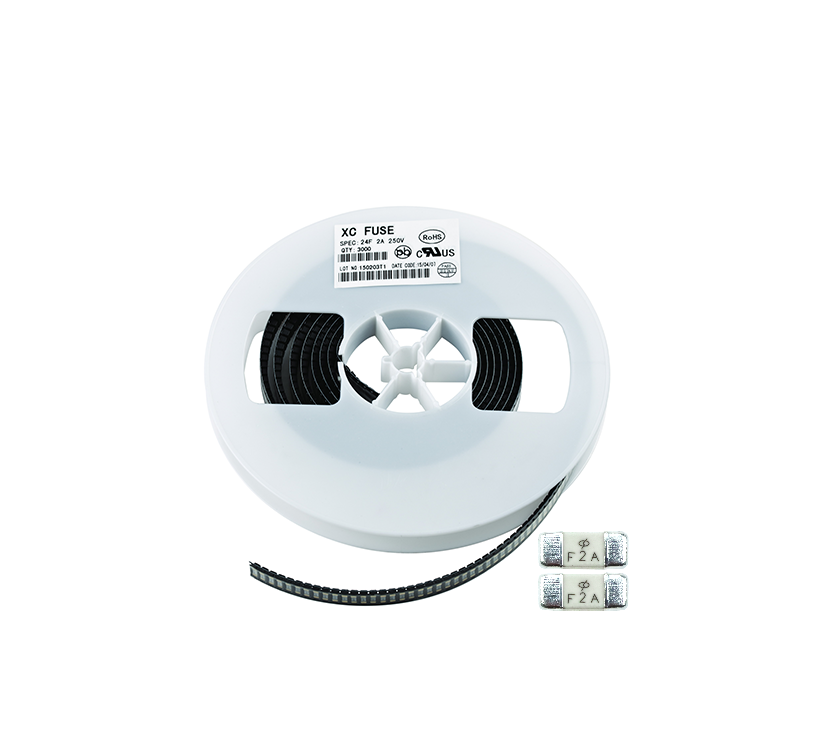

24F贴片2410快熔断保险丝_贴片保险丝_保险丝系列_按产品系列分类_产品展示

您的位置：首页 > 贴片保险丝

立即咨询返回产品列表立即下载

Breaking Capacity 分断能力	Material 材料	Operating Temperature 工作温度	Soldering conditions 焊接条件
UL 50 amperes at 125V/250V AC(250mA-10A)	Substrate-Ceramic/Glass Cover	-40℃～+125℃	Wave solder:260℃,≤5S
UL 50 amperes at 125V DC(250mA-10A)	Termination-Silver-plated with nickel and tin		Wave solder:260℃,≤5S
UL 25 amperes at 250V DC(250mA-10A)	Element--Silver		Hand solder: 360℃,≤1S
VDE 100 amperes at 250V DC(250mA-6.3A)	Element--Silver		Hand solder: 360℃,≤1S

Functional Characteristics 电气特性

Approvals认证（○ Pending表示认证中 ● Approvals表示已获认证）

Current Rating 额定电流	Voltage Rating 额定电压	Norminal Melting I2T(A2sec) ForReference	Approvals 认证
Current Rating 额定电流	Voltage Rating 额定电压	Norminal Melting I2T(A2sec) ForReference
250mA	125V/250V	0.041	○	●	●	●	○	●
300mA	125V/250V	0.052				●	○
315mA	125V/250V	0.060	○	●	●	●	○	●
350mA	125V/250V	0.079				●	○
400mA	125V/250V	0.137	○	●	●	●	○	●
500mA	125V/250V	0.211	○	●	●	●	○	●
600mA	125V/250V	0.362				●	○
630mA	125V/250V	0.392	○	●	●	●	○	●
750mA	125V/250V	0.609				●	○
800mA	125V/250V	0.804	○	●	●	●	○	●
1A	125V/250V	1.212	○	●	●	●	○	●
1.25A	125V/250V	1.615	○	●	●	●	○	●
1.5A	125V/250V	2.191				●	○
1.6A	125V/250V	2.808	○	●	●	●	○	●
2A	125V/250V	4.387	○	●	●	●	○	●
2.5A	125V/250V	6.825	○	●	●	●	○	●
3A	125V/250V	9.641				●	○
3.15A	125V/250V	10.43	○	●	●	●	○	●
4A	125V/250V	16.81	○	●	●	●	○	●
5A	125V/250V	22.81	○	●	●	●	○	●
6A	125V/250V	32.36				●	○
6.3A	125V/250V	37.07	○	●	●	●	○	●
7A	125V/250V	49.98				●	○
8A	125V/250V	68.05	○	○	○	●	○	○
10A	125V/250V	87.16	○	○	○	●	○	○
